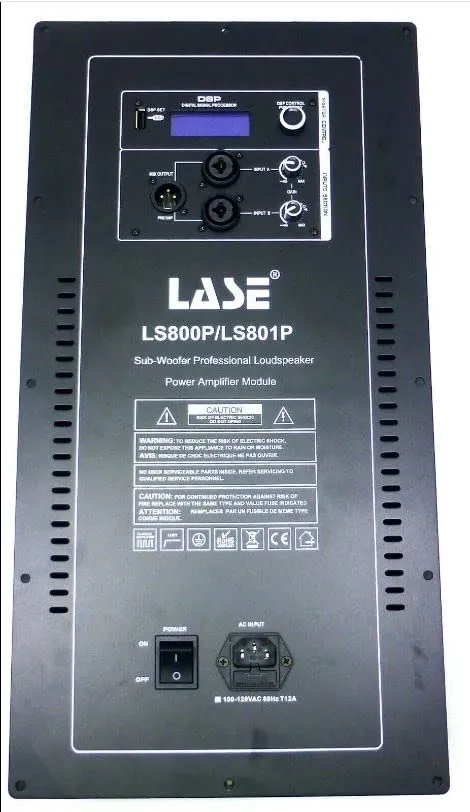

New! Complete LASE Re-Designed SUB Woofer Power Module For Yorkville ELITE LS801P / LS800P Features: Completely Enclosed for easy installation. Reliable sound quality. Class D wiring amplifier. Efficient cooling system,100% pure copper heat sink with fan In/Out Phase switch 0 - 180*. XLR input and link connectors. Low-Pass Crossover 80Hz -250Hz 24db/oct. Comprehensive protection and warning. Specifications: Power Rated @ 8 Ω ONLY. Output Power: (LF) 8 ohm (THD N<1%) Power Output: 1200W ± 5% Peak 2000W DSP Mode: Music/Live/DJ Volume Control: Line Volume Frequency Response: 80Hz.....250Hz 24db/oct. THD: <1% Residual Noise(Short Circuit input): <5mV A Signal-to-Noise Ratio:>95 dBA Sensitivity Line: - 10dBu ±1dB @100Hz Channel separation: (Crosstalk) at 1 kHz>70 dB Input Connectors (per channel): 3-pin XLR Combo, electronically balanced Output Connector: 3-pin XLR. Protection: DC / Short circuit/High Temp./Input/Output Overload Protect. Soft Startup Protect: 1-2 sec. Wiring Class: TD Operating voltage: AC 115V 50Hz/60Hz. Dimensions (L×W×D) : 19" x 10" x 3.75" (482.6 mm x 254 mm x 95.25 mm) Outer Lip (see pics): 17.5" x 8.5" x 3.5" (444.5 mm x 215.9 mm x 88.9 mm) Chamber: see pics Packing dimension: 20" x 11" x 5" (508 mm x 279.4 mm x 127 mm) Net weight: 8.6 lbs (3.90 Kgm) Gross weight: 10 lbs (4.53 Kgm) Mounting Hole Size: 5.5" x 11.5" (139.7 mm x 292.1 mm)

• Package Dimensions ‏ : ‎ 16 x 9 x 6 inches; 4.5 Pounds
• Date First Available ‏ : ‎ October 27, 2020
• Manufacturer ‏ : ‎ LASE
