- 【Strengthen Handle】We have strengthened the spring of the handle of the paste liquid filling machine by using a movable spring head. During the movement, the force point will change accordingly, making the spring force more evenly distributed and less prone to breakage. When in use, pulling down the handle allows for filling, which is both durable and labor-saving

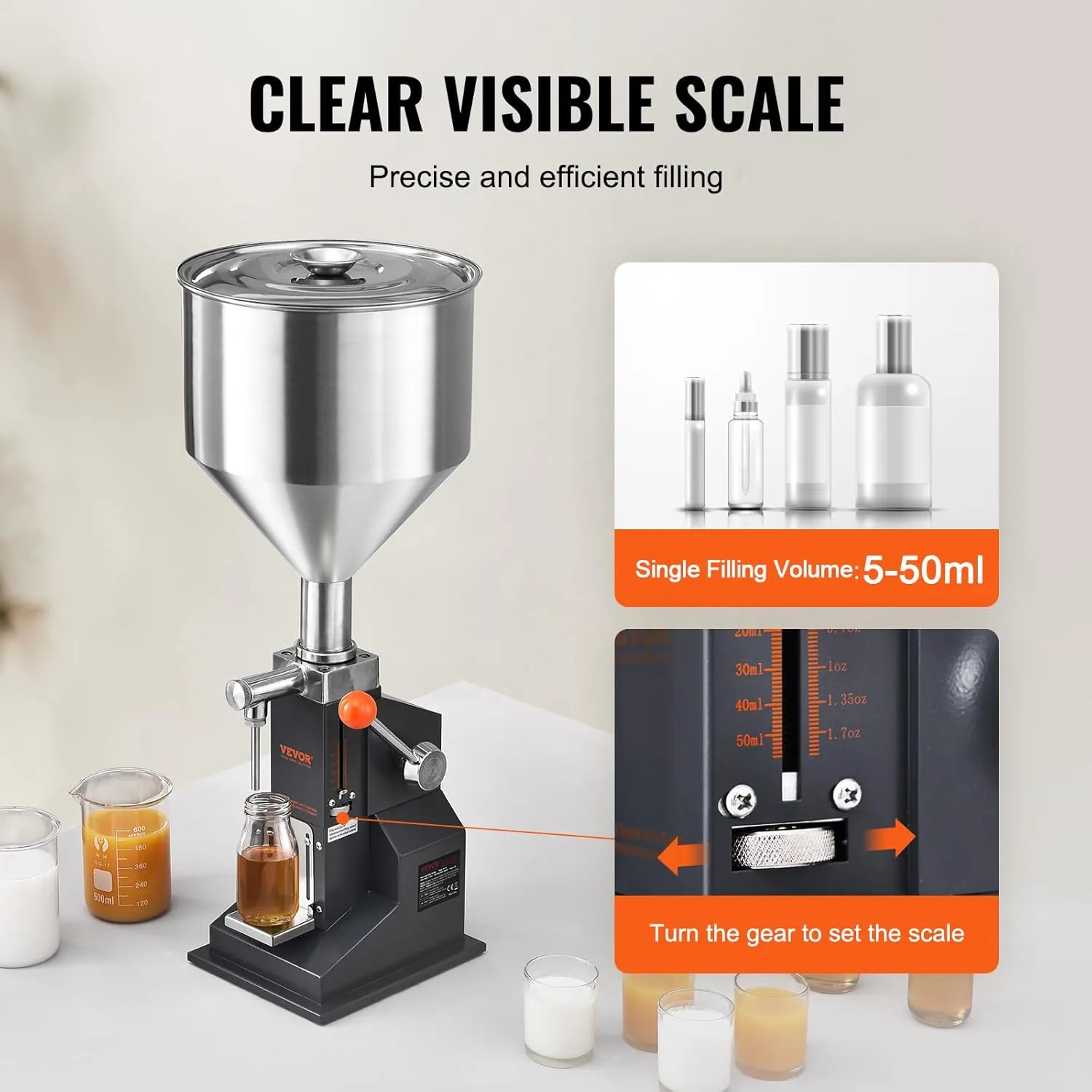

- 【Accurate Quantification】The manual filling machine is equipped with clear scale markings, which can easily adjust the discharge amount by rotating gears. The scale range is 5-100ml (based on water), with high accuracy, achieving precise control of the discharge amount for each filling

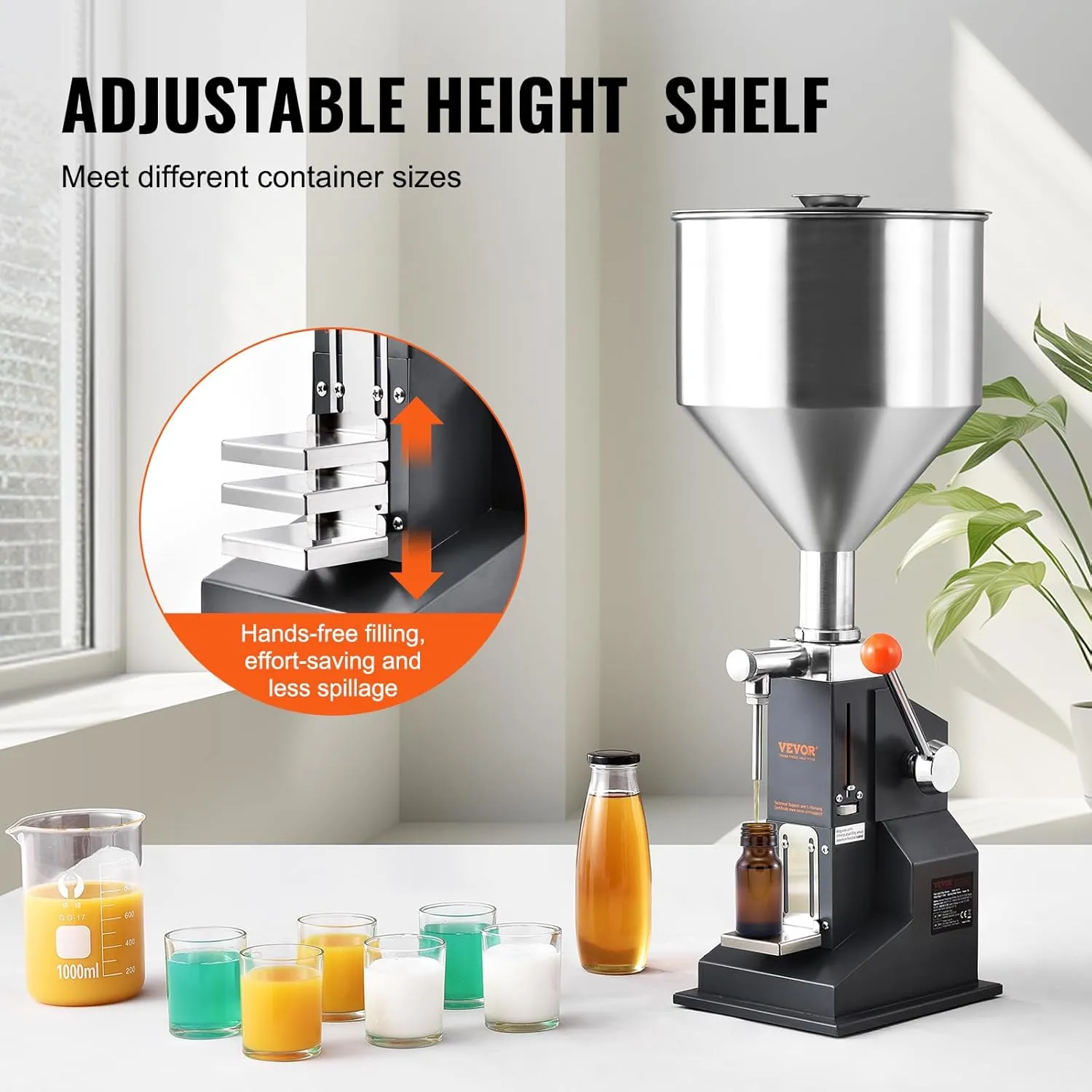

- 【Adjustable Height Tray】The liquid filling machine is equipped with an adjustable height bracket, allowing you to place the bottle on the rack. Even small containers can be accurately aligned with the discharge port. It is equipped with two types of discharge nozzles, 0.16 "/4 mm and 0.31"/8 mm, which can easily align with small diameter containers, ensuring that it is not easy to splash during filling, maintaining work cleanliness, and improving work efficiency
- 【Food Grade Materials】Our material selection is opposite to ordinary silicone and industrial plastic. All components in contact with liquids are made of food grade materials, which have high durability and corrosion resistance. 304 stainless steel has a long service life and is resistant to high temperatures of 392 ° F (200 ℃), ensuring that the liquid does not undergo biochemical reactions with the paste filling machine.
- 【Anti Dripping and Leakage】Each discharge nozzle is made of high-quality anti drip design made of stainless steel, ensuring smooth and unobstructed discharge. The oil seal and discharge nozzle are equipped with anti drip gaskets, ensuring that no dripping occurs during each discharge and improving work stability

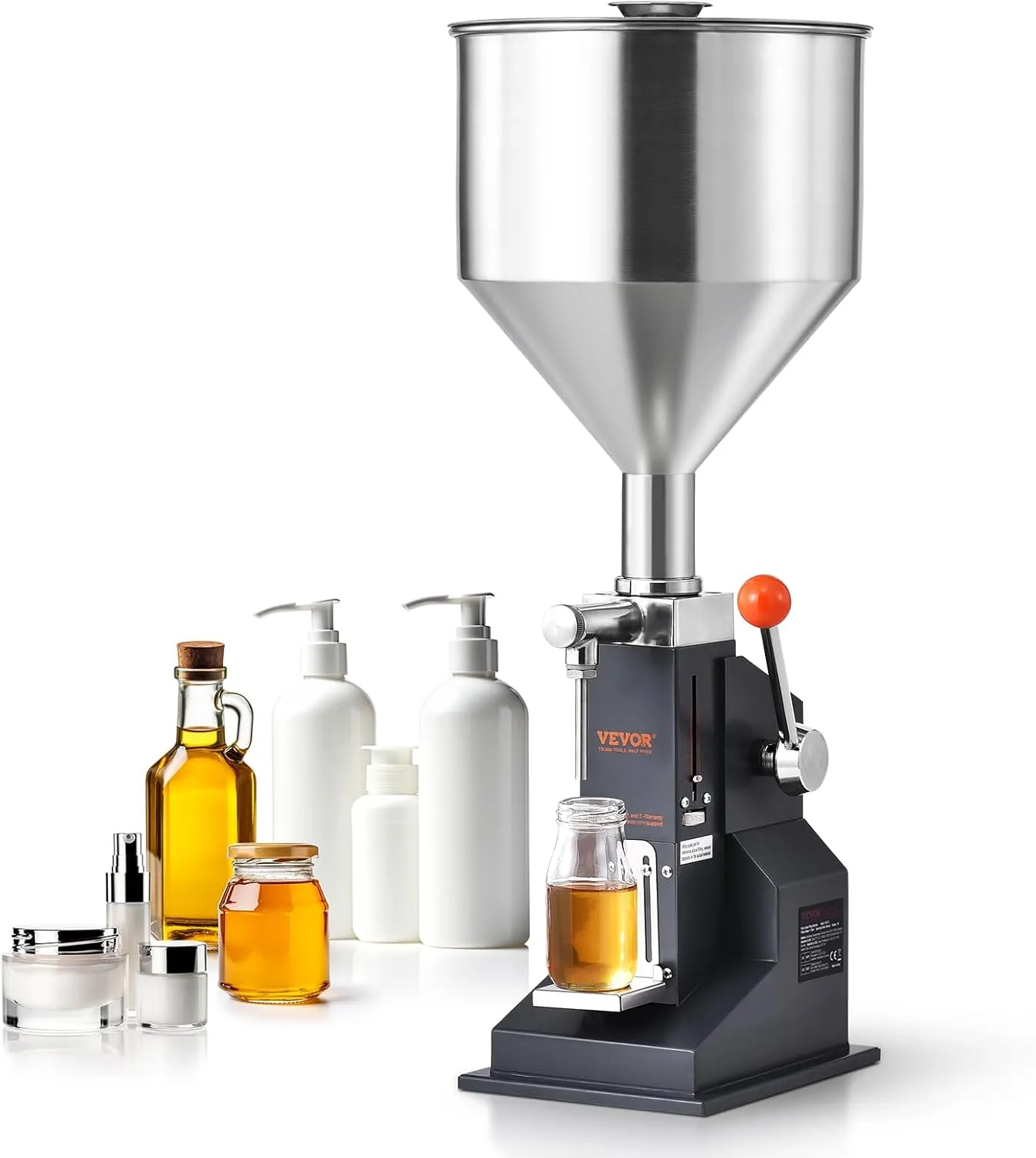

A03 Manual Filling Machine For Liquid & Paste
Key Features
This filling liquid machine needs to be operated by human power. Filling speed: 20-30 times/minute(it depends on user). Filling volume: 5-50ml(adjustable). Filling accuracy ( /- 1%).
All parts of the liquid filler that touch the material being filled are made of food- grade stainless steel, including the hopper with a capacity of 10kg. Solid base keeps sturdy. Easy to maintain.
A high quality anti-drip filling nozzle, made of premium steel, is not easily plugged, ensuring this manual liquid filling machine an accurate and efficient filling. Stable, smooth and durable.
With the filling volume regulator knob, quantitative discharging, filling volume can be accurately controlled. Turn the regulator knob clockwise or anti-clockwise to find your needed filling condition.
Constructed of premium steel as well, the handle switch is solid and durable. Easily use handle switch to control and finish the filling. Convenient to operate with no fatigue.
This manual liquid filling machine is perfect for filling liquid, oil, shampoo, liquid substance. Applicable to the pharmaceutical, cosmetic and other industries, it is the ideal paste liquid filling equipment.
Specifications
Model: A03
Filling Range: 5-50ml
Capacity of Hopper: 10L
Height range: 7.87"/200mm
Bottle diameter range: 3-15 mm
Filling accuracy: ±1%
Machine size: 10.6 x 10.6 x 27.5 inch/ 270 x 270 x 710 mm
Packing size: 13.4 x 13.4 x 31.1 inch/ 330 × 325 × 820 mm
Net weight: 22lbs/10 kg
Package Content
1 x A03 Pro Manual Filling Machine
1 x Nozzle(Inside diameter 6mm, outside diameter 8mm)
5 x O-Rings
1 x Screwdriver
1 x Guide Manual
